“M820L”是一种媒体加速卡，通过将其安装在执行编码和转码的视频处理服务器上，可以在不改变服务器配置的情况下提升处理性能。

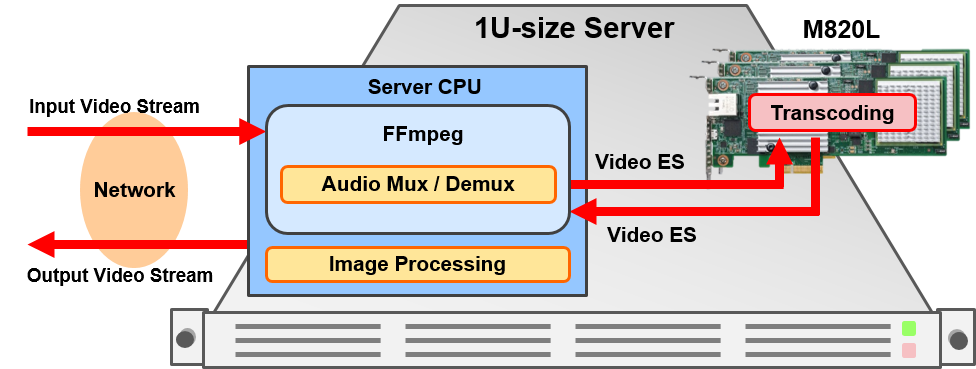

使用实例
应用软件
- 用于社交网络服务（SNS）的实时转码系统
- 用于社交网络服务（SNS）的离线转码系统
- 用于视频归档的转码系统
- 用于安防领域的转码系统

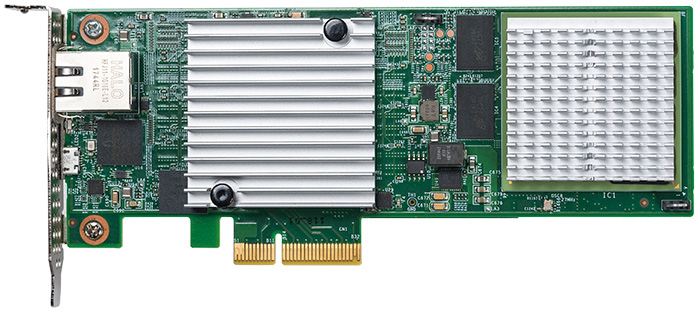

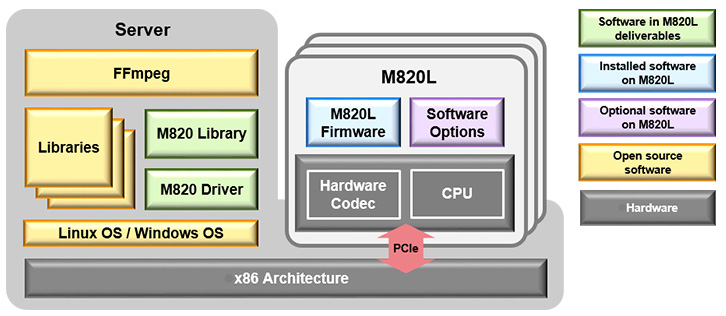

产品构成
规格
| Item | Specification | ||
|---|---|---|---|
| Hardware | CPU | Socionext SC2A11 (SynQuacer™) | |
| Hardware Codec | Socionext Multi-format Codec MB86M30 | ||
| PCI Express | Gen 2.0, 4 lanes card edge | ||
| Power Supply | 12 V (+/- 8%) / 2 A (supplied from PCI Express card edge) | ||
| Power Consumption | 24 W | ||
| Size | 167 mm x 69 mm x 20 mm (without low profile or standard I/O bracket ) |
||
| Weight | 135 g (with low profile I/O bracket) 138 g (with standard I/O bracket) |
||
| Function | Accelerated Process | Encoding or Transcoding to HEVC Encoding or Transcoding to AVC |
|
| Max Resolution | 4K60p (1ch) | ||
| Example of Max Channel Count | Encoding with 720p30 : 16ch Transcoding with 720p30 : 6ch |
||
| User Interface | FFmpeg 3.4.2 / 4.1 | ||
| Environment | OS | Red Hat Enterprise Linux 7.6 Windows Server 2016 |
|
