8K视频编码器




8K视频编码器“e8”支持8K超高清视频直播,为体育赛事、活动直播等应用带来非凡的用户体验。

主要功能

  • ●  8K视频编码器“e8”支持8K超高清视频直播,为体育赛事、活动直播等应用带来非凡的用户体验。
  • ●  易于操作的用户界面和精巧的外形(宽:370㎜× 深:350㎜× 高:70㎜)
  • ●  可搭配Socionext8K媒体播放器“s8”轻松构建直播系统

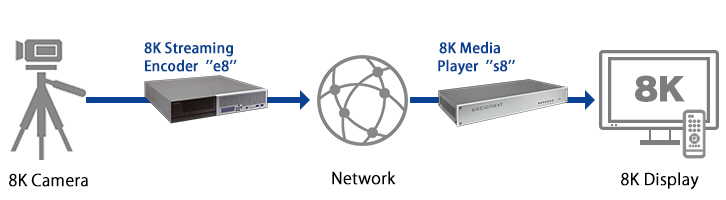

8K超高清视频直播系统

应用

  • ●  体育赛事、电竞直播
  • ●  在线教育、企业直播
  • ●  医疗直播
  • ●  8K+VR直播

Specifications

Item Specification
Interface Input Connector : 12G-SDI x 4ch, DIN type
Video : 8K, 2 sample interleave
Audio : SDI embedded audio
Output Gigabit Ethernet x 2ch
USB3.0 x 2ch (for recording)
Encoding
Function
Video Resolution : 7680 x 4320 pixel
Pixel format : 10bit, 8bit / 4:2:2, 4:2:0
Framerate : 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Encoding format : HEVC
Bitrate : 60Mbps – 200Mbps
Support embedding HDR parameters
Audio Encoding format : AAC LC, Pass-through
Channel : 2ch
Streaming
Function
Streaming
Protocol
HTTP Live Streaming (HLS)
RTMP (with proprietary extension)
RTP (with or w/o FEC)
UDP
Container
Format
MPEG2-TS
Recoding
Function
Supported
Storage
USB memory
File Format MPEG4, MPEG2-TS, Video-ES
Chassis User Interface Buttons and LCD display on front panel
Dimensions 370mm (W) x 350mm (D) x 70mm (H)
Power Supply 100 – 240V
Others Certification CE
FCC Class A
CCC

* This specification is subject to change without notice.
