Optimized for integrated multi-display cockpit systems, the fourth-generation SC172x Series of smart display controllers for automotive applications allow the implementation of even larger multi-display applications, also delivering the enhanced image quality needed for larger display sizes and higher resolution.
The SC172x Series is equipped with an APIX®3 SerDes-repeater function that allows daisy-chaining of multiple smart display controllers, enabling up to four display connections in a chain. By simplifying the integration of multiple displays, this function represents a significant improvement in vehicle wiring efficiency compared to the third-generation controllers.
Along with support for image compensation, the smart display controller meets the need for enhanced image quality, with LED control and pixel compensation by Local Dimming, and Warping-on-the-fly dynamic interpolation of the Warp Map.
As well as strengthening existing safety functions, with system safety being enhanced by adding a mechanism to monitor external LED driver error detection and internal algorithm, these smart display controllers support functional safety (ASIL-B) by complying with the ISO26262 development process.
Features
- ·4K resolution (3840 x 2160 @ 60 Hz / 30 bpp)
- ·APIX®3 SerDes-repeater at up to 12 Gbps (supports daisy-chaining)
- ·VESA display stream compression (DSC) with data compression up to 3.75:1
- ·Socionext SEERIS™* 2D graphics engine
- ·Signature unit, safety layer
- ·Local dimming (including pixel compensation)
- ·Distortion correction using warping-on-the-fly
- ·CPU subsystem (Arm Cortex-M23)
- ·Touch controller connect and audio generator
- ·Spread-spectrum modulation for reduced EMI
- ·AEC-Q100 support
- ·ASIL-B support (ISO26262-compliant development process)
*: SEERIS is a trademark of Socionext Inc.

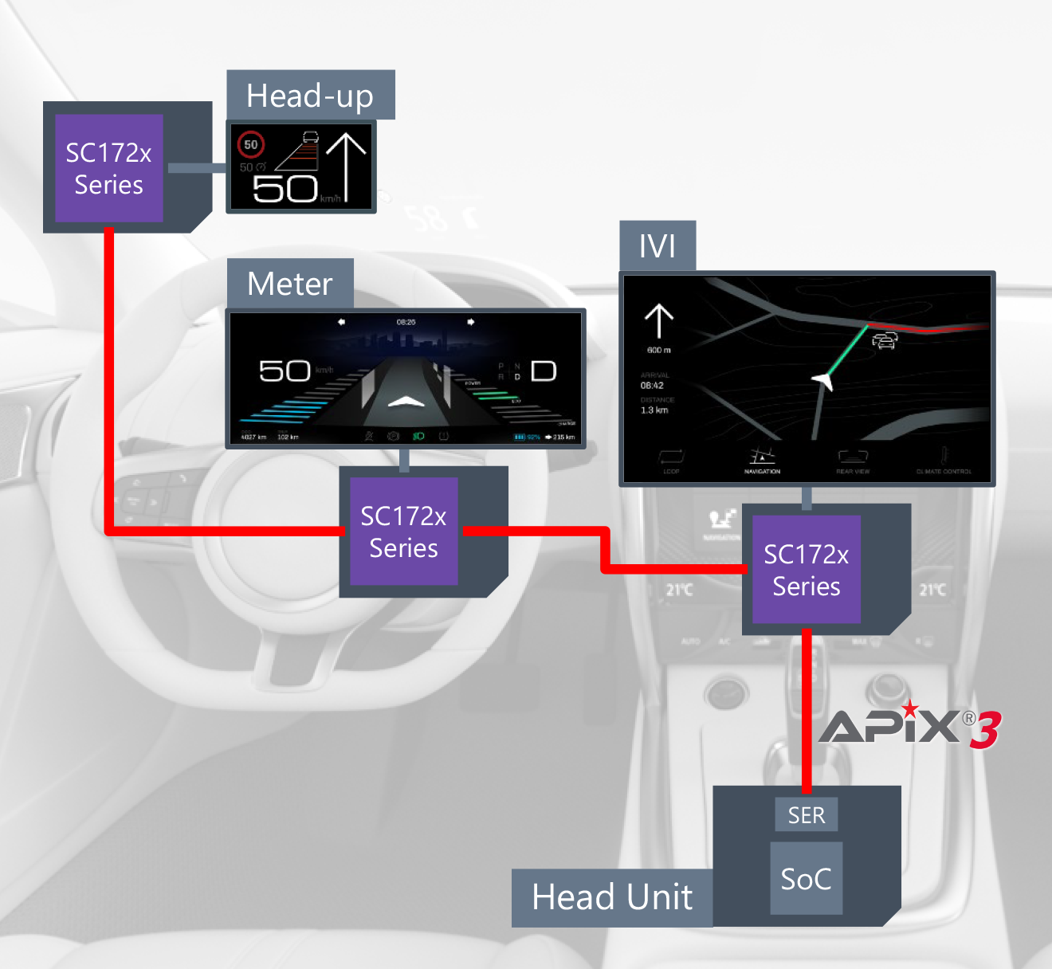

System Structure
Specifications
Features |
SC1721 |
SC1722 |
SC1723 |
|---|---|---|---|
Package - Pin |
EP-LPFQ-216 |
TE-BGA-437 |
TE-BGA-427 |
Package - Size |
24mm x 24mm |
23mm x 23mm |
23mm x 23mm |
Video Output |
1920 x 1080 |
3840 x 1080 |
3840 x 2160 |
Video Output |
Dual LVDS, OpenLDI |
Dual LVDS, OpenLDI |
eDP 5.4Gbps 4lane |
APIX3 SerDes-repeater* |
Rx : 2 x 3Gbps with HDCP2.3 |
Rx : 2 x 3Gbps or 1 x 6Gbps with HDCP2.3 |
Rx : 2 x 6Gbps with HDCP2.3 |
Video Input* |
LVDS, OpenLDI |
LVDS, OpenLDI |
LVDS, OpenLDI |
Local Dimming |
512 LED block |
512 LED block |
1024 LED block |
Warping-on-the-fly |
Yes |
No |
No |
ISO26262 ASIL-B |
Yes |
Yes |
Yes |
*：APIX3 SerDes-repeater or Video Input is exclusive depending on the line up.
