The SC1810 Series is optimized for in-vehicle graphics display applications such as digital clusters, central HMI and surround-view-systems. In addition to its high resolution graphics capability with improved 3D image processing performance which is five times more than that of the company’s previous products, the SoC is also capable of handling 6 channels Full HD video inputs and 3 channels of Full HD display outputs.

The SoC realizes “Integrated HMI (Human Machine Interface) system” which manages various information from inside and outside the car and controls multiple displays.

Furthermore, the SC1810 is equipped with a proprietary “Vision Processor Unit (VPU)”, which is compliant with the computer vision API OpenVX, developed by the standardization organization Khronos Group. The SC1810 VPU includes OpenVX compliant hardware accelerator, as well as programmable data parallel accelerator, enabling advanced image recognition and other advanced functions at high speed and low power consumption.

Features

• ·Quad Arm® Cortex™ A9 MPCore™
• ·Arm® Neon™ SIMD Engine
• ·3D Engine (OpenGL® ES 3.1) POWERVR™ 8XE
• ·Socionext SEERIS ™ Capture/Graphics/Display Engines
• ·Socionext Vision Processor
• ·DDR3-1866; DDR3L-1600, 16/32/64 bus width
• ·3 Independent Display controller
• ·6 Independent Video Capture Units
• ·Multi-format Decoder Full-HD: 6x30fps or 2x60fps
• ·Wide range of peripherals for external connectivity
• ·Multi-format Encoder Full-HD: 2x60fps
• ·Motion JPEG Decoder Full-HD 6x30fps
• ·Standard I/O: UART, SPI, USB, Ethernet AVB etc.
• ·Automotive I/F: MediaLB® (3-/6-Pin), CAN
• ·FCBGA-1024; 0.8 pitch

*: SEERIS is a trademark of Socionext Inc.

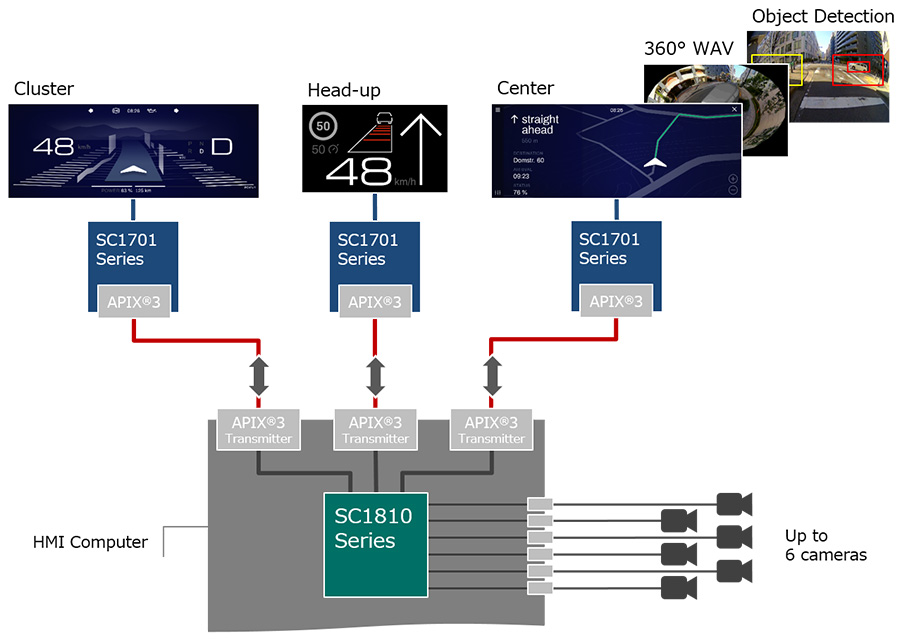

System Structure

Specification

	SC1810AR3-134	SC1810AR3-113	SC1810AR3-103
Package-Pin	FCBGA-1024
Size,Pitch	27x27mm, 0.8mm
Processor	Arm® Cortex™-A9 Dual L1 Cache I:32KB + D:32KB L2 Cache 1MB 1066MHz	Arm® Cortex™-A9 Quad L1 Cache I:32KB + D:32KB L2 Cache 1MB 1066MHz
Memory	DDR3-1866/DDR3L-1600 ×16, ×32, ×64
Graphics	PowerVR™　Series8XE GE8300 3D Engine
	Socionext 2D Engine(SEERIS™)
Video	Display Controller 2× up to 1920×1080p DRGB, FPD-Link, YUV	Display Controller 3× up to 1920×1080p DRGB, FPD-Link, YUV
	Video Capture 4×1920x1080 DRGB, YUV, MIPI-CSI2	Video Capture 6×1920x1080 DRGB, YUV, MIPI-CSI2
Codec	H.264 Decoder M-JPEG Decoder		H.264 Encoder/Decoder M-JPEG Decoder
Recognition	Socionext Vision Processor(Open VX) DPA-only	Socionext Vision Processor(Open VX) DPA+HWA
Strage	USB2.0 host/func x1 SD/eMMC rev3.0 x1
Peripherals	Standard I/O I2C, I2S, UART, SPI, etc
	Network CAN, MOST 3-Pin, Ethernet-AVB(MII/RMII/GMII,IEEE802.1AS/IEEE802.1Qav/IEEE802.1Qat)
Support OS	eT-Kernel QNX
