Features

---

· Easy to use

    -  "All-in-one" package to reduce system BOM

    -  Built-in autonomous motion and distance detection functions, with I2C / SPI connection for setup and result acquisition

· Wide detection range

    -  Priority detection range: Frontal 8m (* 1)

    -  120deg / 95deg selectable FOV(*1, *2) with Digital beam shaper

·Suitable for battery operation

    -  Average operating power consumption for human detection applications is 0.5mW (* 3)

    -  MCU can be put to sleep until a moving object is detected after setting up a running sensor



        *1： Detection area depends on environmental conditions

        *2：Half distance angle

        *3： Capable of operating at 0.1% duty cycle in motion detection mode



System configuration example

---

​

​

Application Cases

---

· Entry range and status detection

    Internal processing engine calculates and outputs motion detection (entry motion/status detection)
 results via DETOUT

· Distance detection

    The internal processing engine calculates and outputs the distance to the moving object via I2C or SPI.


Specification

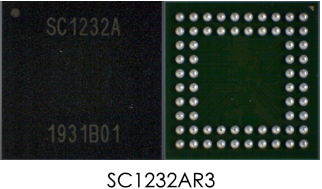

Size,Package	Size: 9mm x 9mm x 1.18mm, BGA package, 0.8mm pitch, 64pin
Supply voltage	1.8V
Power consumption	average 0.5mW(*3)
Operating package top temperature	-40 to 105°C
Output power	Tx EIRP (typ) 4.0dBm
Detection area	Preferable detection area: 8m(*1)in front direction 120/95° selectable FOV(*1, *2)
Sensor output	Motion Detection result, Distance Detection result

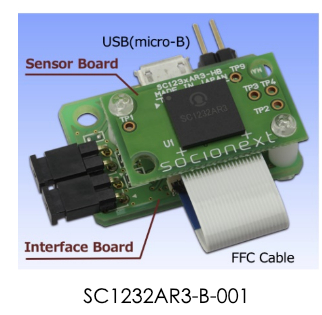

Evaluation Kits

---
