Features

---

· Easy to use

    -  "All-in-one" package to reduce system BOM

    -  Built-in autonomous motion and distance measurement functions, with I2C / SPI connection for setup and result acquisition


· Wide detection range

    -  Priority detection range: frontal 8m (* 1), FOV: 120deg (*1, *2)


    -  2-channel receive antenna can be calculated by external MCU to achieve 2D angle detection


· Suitable for battery operation

    -  Average operating power consumption for human detection applications is 0.5mW (* 3)


    -  MCU can be put to sleep until a moving object is detected after setting up a running sensor




        *1：Detection area depends on environmental conditions


        *2：Half distance angle


        *3：Capable of operating at 0.1% duty cycle in motion detection mode




System configuration example

---

​

​

Application Cases

---

·Entry range and status detection


    Internal processing engine calculates and outputs motion detection (entry motion/status detection) results via DETOUT


​

​

​

​

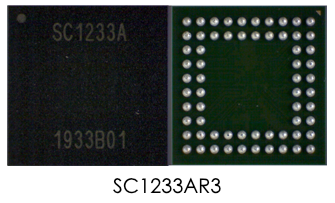

Specification

Frequency range	24.06 - 24.24GHz
Size,Package	Size: 9mm x 9mm x 1.18mm, BGA package, 0.8mm pitch, 64pin
Supply voltage	1.8V
Power consumption	average 0.5mW(*3)
Operating package top temperature	-40 to 105°C
Output power	Tx EIRP (typ) 4.0dBm
Detection area	Preferable detection area: 8m(*1) in front direction FOV(*1, *2): 120°
Sensor output	Motion Detection result, Distance Detection result 2ch Complex data for Angle Detection

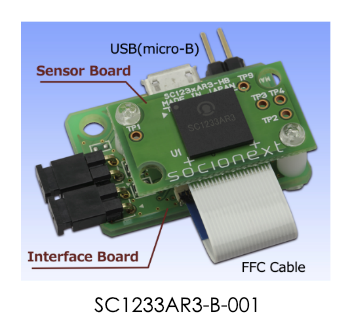

Evaluation Kits

---
