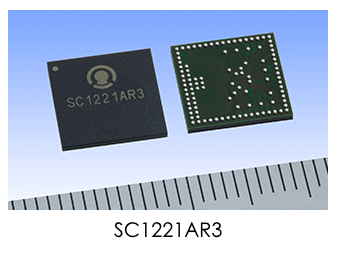

Features

---

· Suitable for 2D motion detection

    -  Integrated with 1×4 linear array receiving antenna to detect multiple moving objects' orientation, speed and distance simultaneously

    -  High precision linear chirp FMCW radar

    -  Sensing area: up to 10m (* 1), 120 degree (* 1) angle

· Highly integrated device for easy hardware design

    -  Integrated with antenna, radio, ADC, FIFO and SPI interfaces

    -  Ability to use a reasonable PCB, less BOM, and easy assembly

    -  Small package (9.0mm x 9.0mm, BGA package)

· Low power consumption

    -  4-stage operation (power off, deep sleep, light sleep, induction)

    -  Intelligent power control sequencer, flexible duty cycle operation

    -  Average power consumption at 2D position sensing is 1mW (* 2)



        *1：Depends on sensor configuration and environmental conditions

        *2： Test results based on Socionext assumptions

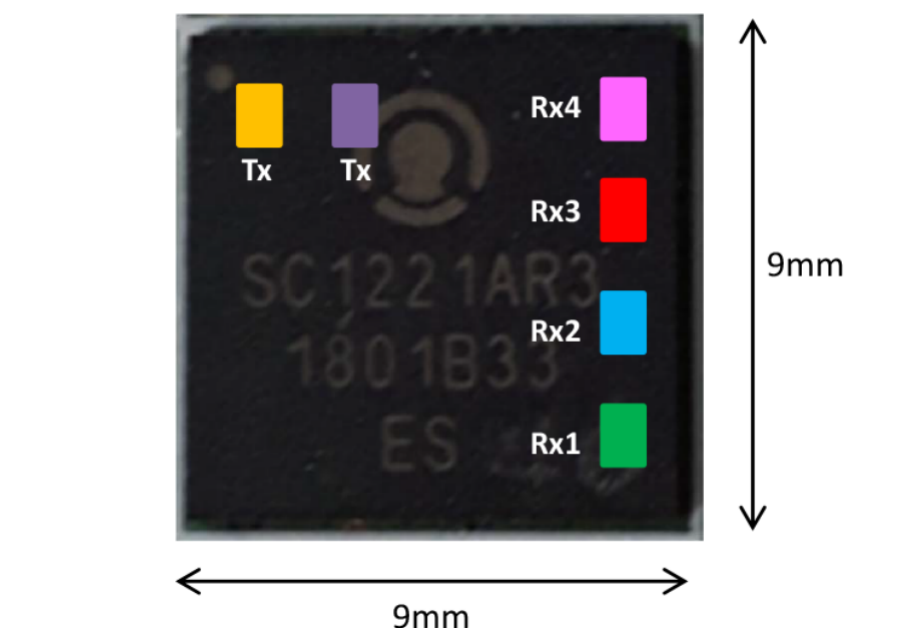

Antenna Configuration

---

​

​

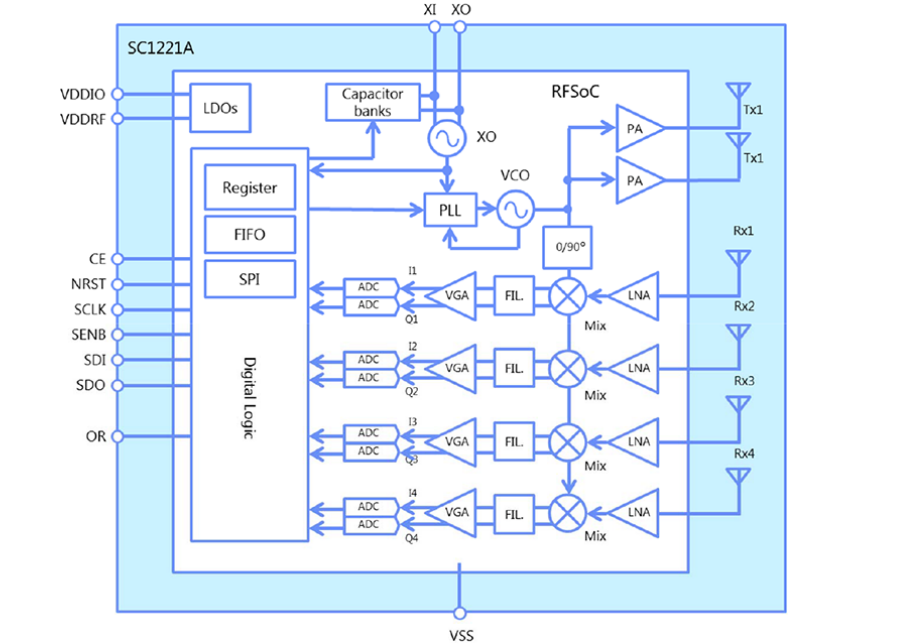

Block Diagram

---



​
​

​

Specification

Radar mode	FMCW/FSKCW/CW
Power Supply	1.5V – 1.8V (core) / 1.8 – 3.3V (I/O)
Power Consumption	368mW (Peak power consumption) 1mW (0.2% duty cycle operation using Deep sleep)
Transmitter	Frequency: 60.025 – 61.475GHz EIRP: +5dBm
Receiver	Noise Figure: 12dB
Digital block	ADC (11bit 10MHz)、FIFO (32kB)、SPII/F (≤50MHz)
Temperature	-40 to 85°C

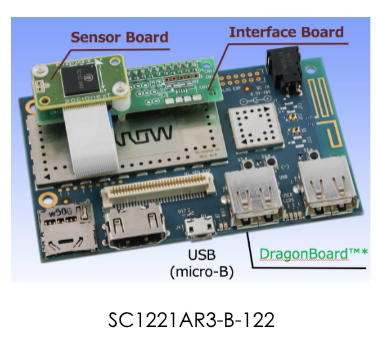

Evaluation Kits

---
