Features

---

· Suitable for 3D motion sensing

    -  2 Tx and 2 x 2Rx antennas detect azimuth, elevation, speed and distance

    -  Wide bandwidth (up to 6.8GHz) and high accuracy linear linear FM FMCW radar

    -  Sensing area: up to 0.5m(*1) with <1cm(*2) resolution (in case of hand gestures)

· Highly integrated devices to simplify hardware design

    -  Integrated with antenna, radio, ADC, FIFO and SPI interfaces

    -  Rational PCB layout, less BOM and easy assembly

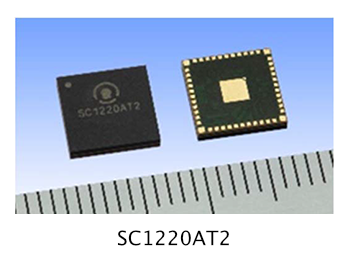

    -  Small package (7.0mm x 7.0mm, LGA package)

· Low power consumption

    -  4 levels of operation (shutdown, deep sleep, light sleep, induction)

    -  Intelligent power control sequencer with flexible duty cycle operation

    -  Average power consumption during gesture sensing is 2.5mW (* 3)



        *1：Depends on sensor configuration and environmental conditions

        *2： Change subject to further study

        *3： Test results based on Socionext assumptions

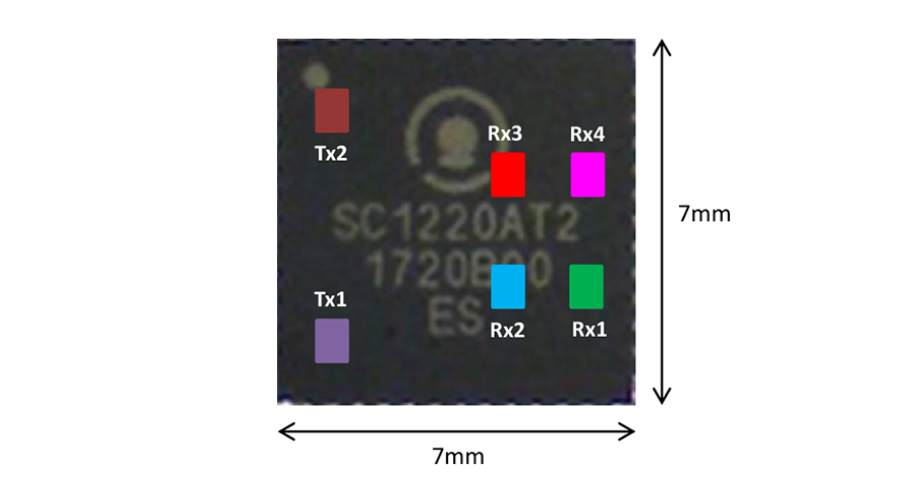

Antenna Configuration

---

​

​

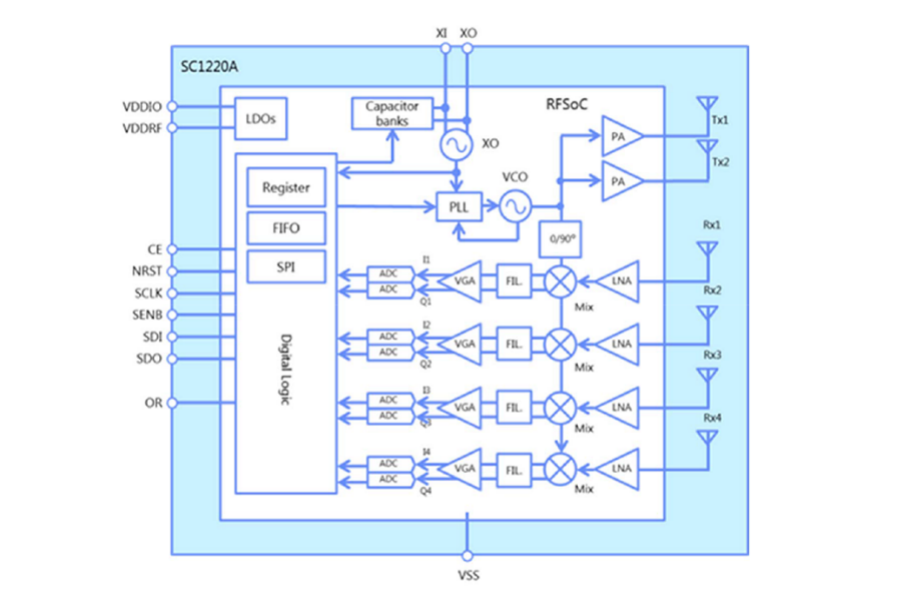

Block Diagram

---



​
​

​

Specification

Radar mode	FMCW/FSKCW/CW
Power Supply	1.5V - 1.8V (core) / 1.8 - 3.3V (I/O)
Power Consumption	308mW (Peak power consumption) 2.5mW (0.5% duty cycle operation using Deep sleep)
Transmitter	Frequency: 57.1 - 63.9GHz (6.8GHz bandwidth) EIRP: -7dBm
Receiver	Noise Figure: 12dB
Digital block	ADC (11bit 10MHz)、FIFO (32KB)、SPII/F (≤50MHz)
Temprerature	-40 to 85°C
