Nessum* is the latest solution for IoT communications. For wired
communication, Nessum leverages the installed infrastructure through
its support for various types of cables, such as powerline, coaxial,
flat and twisted pair; Nessum can also achieve short range wireless
data transmission either in air or water.
Nessum features reliable data transmission and intelligent device
management for smart city, residential, commercial and industrial
applications. The SC1320A IC applies Nessum technologies to enable
IoT applications efficiently and cost-effectively.
* : “nessum” and its logo is a registered trademark or a pending
trademark application of Panasonic Holdings Corporation in Japan and
in other countries.
These products are conformity with the Nessum technology
developed by Panasonic Holdings Corporation.
SC1320A
Features
·The world’s 1st communication IC to embed the latest Nessum core conforming to IEEE 1901-2020 (as of March 2021).
·Multihop function is supported for extended distances.
·The integration of Ethernet MAC (RMII) and UART/SPI interfaces makes the device easy to use in IoT applications.
Advantages
·Stable powerline communication is achieved by the combination of high quality analog and noise reduction techniques.
·Long distance communication (up to 10km*, depending on the communication environment).
·Low power consumption (around 200mW) by proprietary technology.
·Compact package size.
·With a compact power circuit design the PCB design and BOM costs can be optimized.
* : Depends on the communication environment
Applications

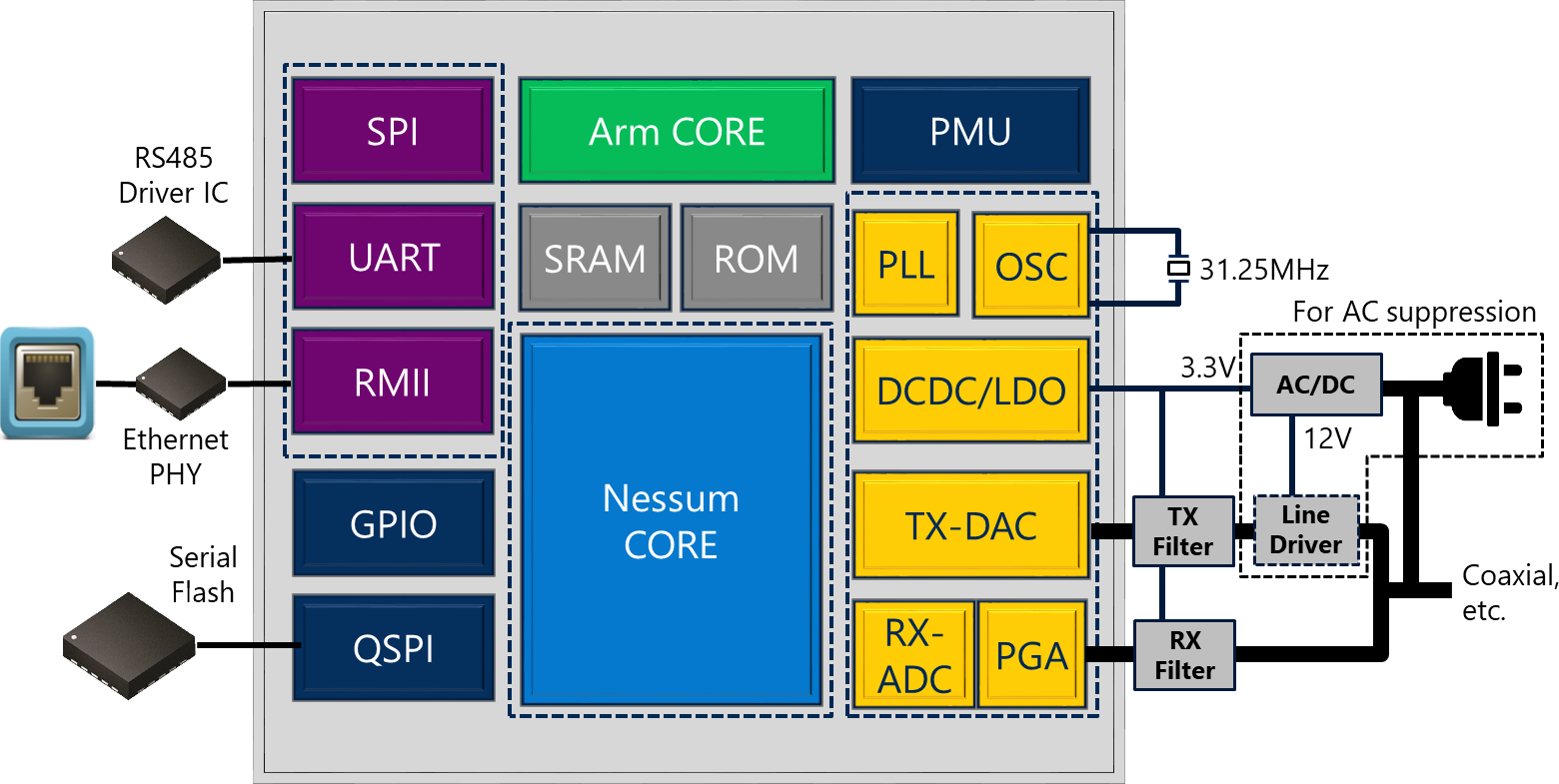

System structure
[Notes]
PMU: Power Management Unit
DCDC/LDO: DC-DC Converter / Low Drop Out
PGA: Programmable Gain Amplifier
Specifications
| Item | Spec |
|---|---|
| CPU | Arm Cortex-M |
| Clock | 125MHz |
| Flash | Quad-SPI |
| Interface | SPI/UART/RMII |
| Supply voltage | 3.3V unity |
| Package | QFN |
| Temperature | -40°C to 85°C |
| Power | 200mw(Typ.) |
"Arm" and "Cortex" are trademarks or registered trademarks of Arm Limited (or its subsidiaries) in the EU and/or elsewhere.
Evaluation kit
We also provide evaluation kit for SC1320A for development purposes.
Please send your request via the inquiry form.
