Description

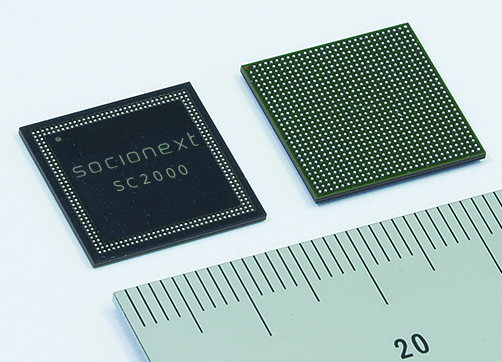

“SC2000” is the latest SoC of the “Milbeaut®series” . Equipped with a digital signal processor optimized for computer vision, it also features advanced functionalities such as 360-degree, real-time spherical stitching with multi cameras, image stabilization for without mechanical gimbals, and rolling shutter correction. The image processing performance is up to 1.2Giga pixel per second, three times faster than the previous processor, while the power consumption is lower than 1.7W in typical operating conditions. “SC2000” targeting Action Camera, Drone Camera, supporting various functions with high performance and low power consumption of the latest-trend.
Functions

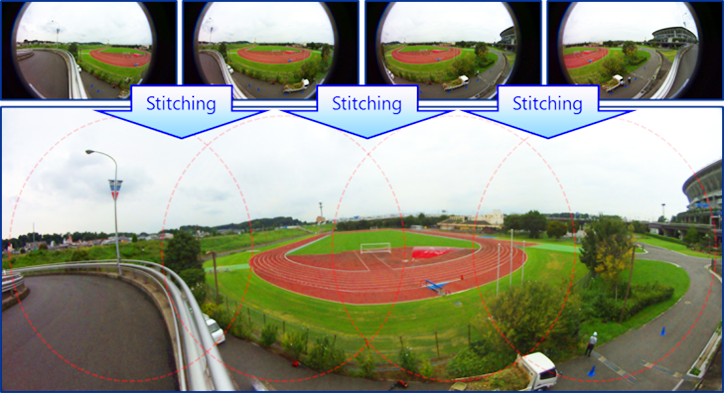

4-Camera Stitching
It's possible to stitch the video captured from at most 4 cameras (Max : 4K 30fps). When using a fish-eye lens, it's possible to capture a video by the wider field angle by correcting the distortion in real time.
Slow Motion(Full HD 240fps video)
High frame rate video capture is possible. The captured video can be enjoyed as slow motion video using an application that can change the playback frame rate.

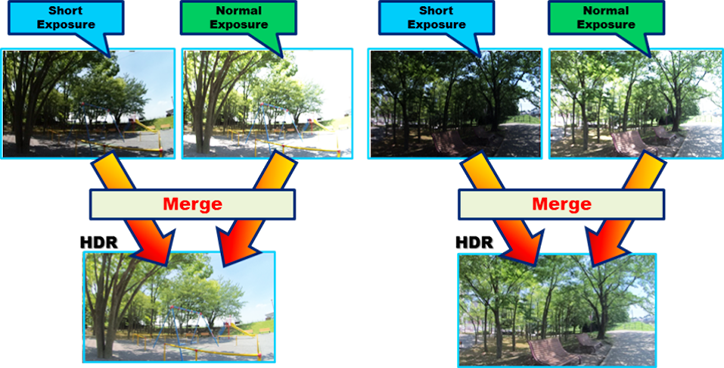

HDR (High Dynamic Range)
HDR feature prevents under/over exposures and captures more vivid and detailed image in difficult scenes such as backlight, high contrast, and night scenes. Available for both Still and Video captures up to 30fps in full HD size.
Specifications
| ISP Process | 28nm |
|---|---|
| Product Structure | PoP |
| CPU | CortexA7-Quad 650MHz |
| Package size | 15㎜ x 15㎜, 0.5㎜ pitch |
| SDRAM type | LPDDR-3 |
| Image Processing rate | Max 1.2Gpixel/sec |
| Max Pixel Size | No Limitation |
| Sensor I/F | MIPI Rx(4lane) 2.5Gbps x 4ch |
| S-LVDS(16lane/4clk) 1.0Gbps | |
| SLVS-EC(8lane) 2.3Gbps x 1ch | |
| Host I/F | PCI-e, USB3.0, 1Gbit Ethernet |
| LCD I/F | MIPI-DSI/16bit Parallel |
| TV I/F | HDMI 2.0 |
| Video Codec | H.264 4K p30/HEVC 4K p30 |
| Chroma NR | ○(Hardware) |
| Bayer NR(ELF) | ○(Hardware) |
| Lens Distortion Correction | ○(Hardware) |
| Face Detection | ○(Hardware Assist) |
| Smile/Blink Detection | ○(Hardware Assist) |
| High Dynamic Range(HDR) | ○(Hardware) |
| 动画抖动校正 (EIS) | ○(Hardware) |
| Defect Pixel Correction | ○(Hardware) |
| Color Aberration | ○(Hardware) |
| 3DNR | ○(Hardware) |
Milbeaut is a registered trademark of Socionext Inc. company and product names mentioned herein are trademarks or registered trademarks of their respective companies.
