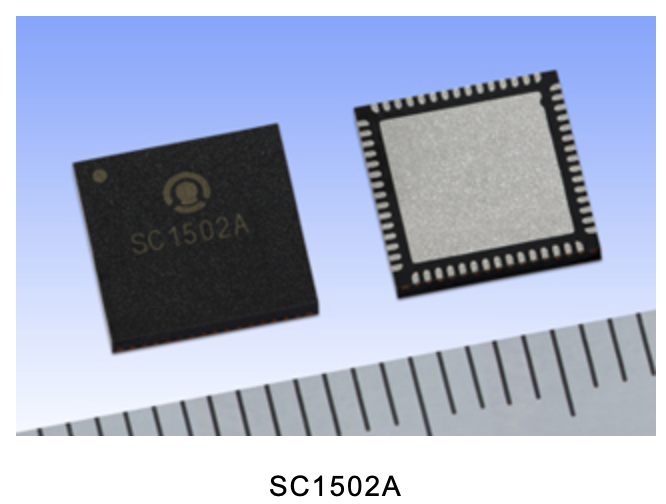

| "SC1502A" is a demodulator LSI compatible with various digital broadcasting systems including the Japanese 4K/8K satellite digital broadcasting "ISDB-S3" and the latest European satellite digital broadcasting “DVB-S2X”. It has a wide line-up depending on the number of demodulators and the corresponding digital broadcasting system. It is also highly connected to a variety of tuners, providing a low-cost, high-performance digital TV front-end solution. |
 |
Features
Supports many digital broadcasting systems, including the Japanese 4K/8K satellite digital broadcasting "ISDB-S3" and the latest European satellite digital broadcasting “DVB-S2X”.
Wide line-up depending on the number of demodulators (single model/ dual model*1) and the corresponding digital broadcasting system.
Single and dual models have the same package shape and are pin-compatible and software-compatible, making it easy to deploy customer’s set models.
World's smallest package size*2
※1:Only one demodulator for DVB-T2/T2-lite. DVB-S2 and ISDB-S3 cannot be demodulated simultaneously.
※2: Among dual models for ISDB-S3. As determined by our company study, conducted in July 2020.

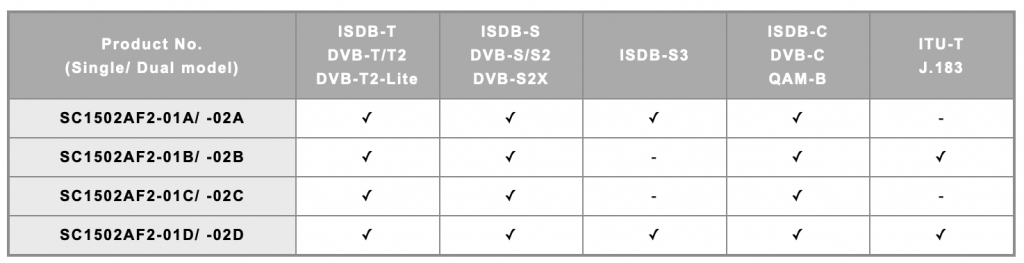

Support broadcasting system

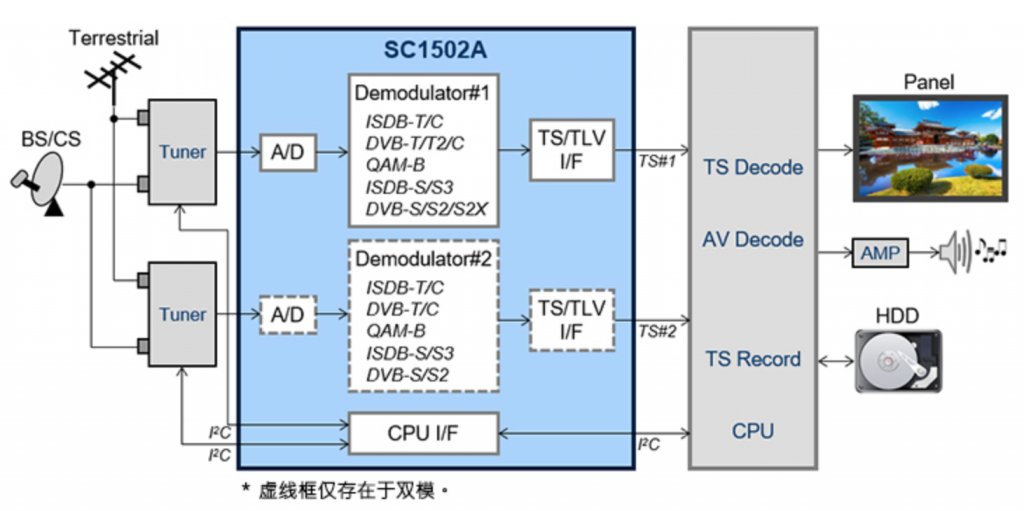

Block Diagram
Specifications
