8K TV HEVC Decoder LSI SC1400A (BONNY)

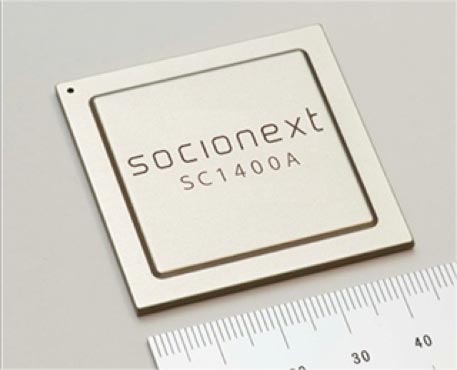

SC1400A
We have developed the World’s first* 8K HEVC real-time decoder LSI, “SC1400A”. It conforms to the standard "ITU-R BT.2073" for HEVC encoding of super-high definition satellite broadcasting in Japan, and realized single chip decoding of 8K 60p video. It is equipped with one lane of PCI Express 2.0 (Gen2), and four channels of HDMI 2.0 Tx as external interfaces.
Features

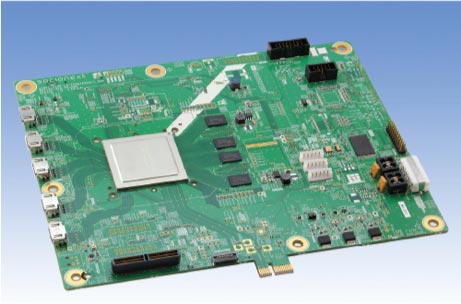

SC1400A Evaluation Board
| World’s first 8K/60p HEVC real-time decoder LSI for 8K TV solution(ITU-R BT.2073). |
| One lane of PCI Express 2.0 (Gen2), and four channels of HDMI 2.0 Tx as external interfaces. |
| Using this decoder and our digital TV SoC makes it easy to develop 8K TV products. |

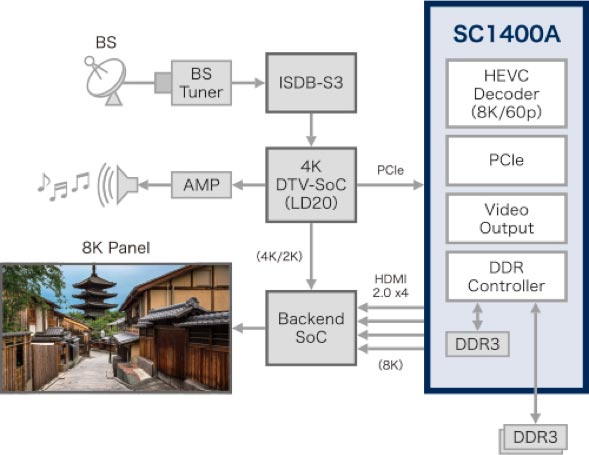

System Configuration [8K TV]
Specifications
| Function | Specification | |
|---|---|---|
| Product number | SC1400A | |
| Package | BGA(45 x 45mm) | |
| Process | 28nm | |
| Main memory | SiP | DDR3-1866(32bit x4ch) |
| External | DDR3-1866(32bit x3ch) | |
| Video decoder | HEVC 8K/60p 10bit(4:2:0) ITU-R BT.2073 (4 Slice Format Encoding) |
|
| Picture quality | 8K/60p, HDR | |
| Video output | HDMI2.0 x4 | |
| PCIe | Gen2(1lane) | |
